제품소개

The Choice for the Next Generation

이음관

REDUCER

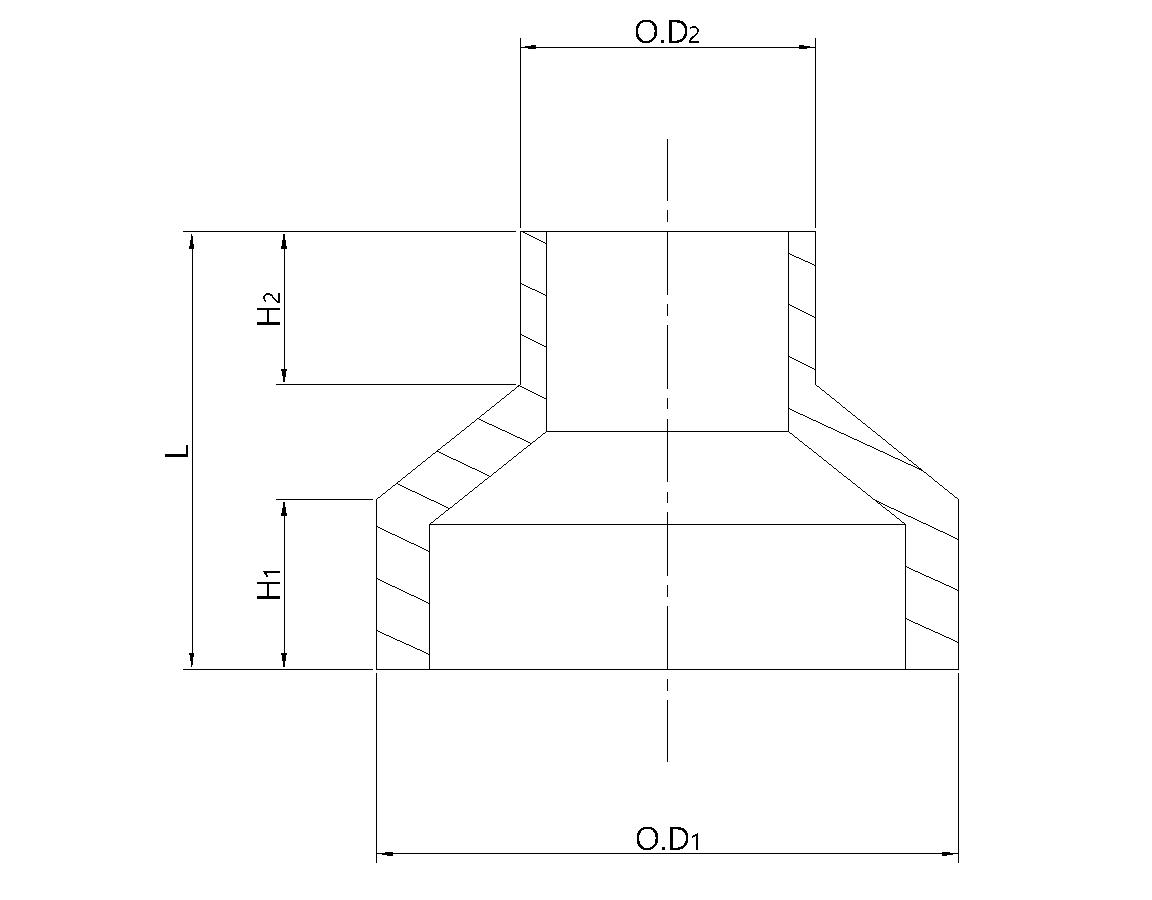

Product Name SDR OD1 OD2 L H1 H2
REDUCER 9 90 75 150 80 60
REDUCER 9 110 50 160 82 55
REDUCER 9 110 63 168 82 62
REDUCER 9 110 75 173 83 68
REDUCER 9 110 90 177 84 79
REDUCER 9 125 63 178 88 62
REDUCER 9 125 75 182 88 68
REDUCER 9 125 90 186 88 78
REDUCER 9 125 110 188 88 80
REDUCER 9 140 63 190 91 63
REDUCER 9 140 75 190 91 69
REDUCER 9 140 90 195 91 76
REDUCER 9 140 110 195 93 80
REDUCER 9 140 125 200 94 85
REDUCER 9 160 63 202 97 65
REDUCER 9 160 75 200 97 69
REDUCER 9 160 90 208 98 78
REDUCER 9 160 110 209 98 81
REDUCER 9 160 125 211 99 85
REDUCER 9 160 140 212 100 92
