이음관

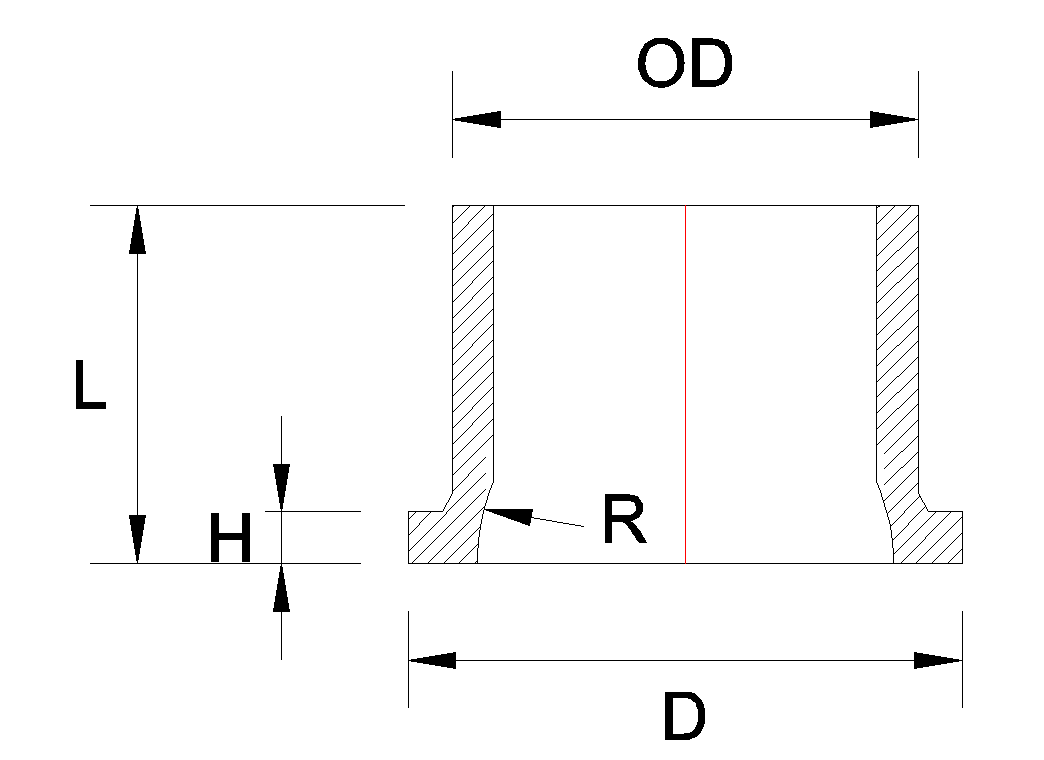

V-R FLANGE ADAPTER
| Product Name | SDR | OD | L | H | D | R |
|---|---|---|---|---|---|---|
| 110 | 11 | 110 | 128 | 22 | 158 | |
| 140 | 11 | 140 | 143 | 23 | 185 | |
| 160 | 11 | 160 | 149 | 29 | 212 | |
| 225 | 11 | 225 | 161 | 35 | 268 | |
| 280 | 11 | 280 | 171 | 35 | 313 | |
| 315 | 11 | 315 | 214 | 57 | 368 | |
| 355 | 11 | 355 | 223 | 73 | 416 | |
| 400 | 11 | 400 | 238 | 77 | 482 | |
| 450 | 11 | 450 | 240 | 93 | 535 | |
| 500 | 11 | 500 | 257 | 100 | 585 | |
| 630 | 11 | 630 | 244 | 104 | 685 |
V-R FLANGE ADAPTER
